ID: 19

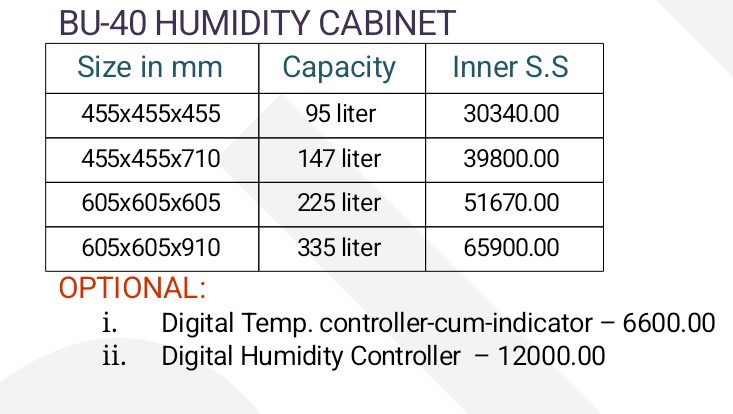

BU-40 HUMIDITY CABINET
₹30340.00
Double walled construction, inner made out of richly anodized aluminum or stainless steel sheet and outer that of thick mild steel duly finishes in stoving enamel paint. Gap is filled with glass wool for temp, insulation. A circulation fan has been provided to maintain uniform temp. and humidity throughout the chamber. Nichrome heating elements are provided to heat the chamber effectively.
Temperature range from ambient to 60°C is controlled by a thermostat. L-shaped thermometer provided to indicate temp. in the chamber. Humidity is created by generating steam by heater and subsequently condensation in circulating air. The humidity is controlled by a humidistat from atmospheric humidity 95% ±3% RH.
The double walled door has been provided with a double wall clear glass window for observation in the chamber without opening the door and disturbing chamber conditions.
A control panel has been provided on left of the body and is provided with all control switches, indicators etc. Equipment to work on 220V AC 50 Hz single phase. Supplied complete with cord and plug but without hygrometer.
Temperature range from ambient to 60°C is controlled by a thermostat. L-shaped thermometer provided to indicate temp. in the chamber. Humidity is created by generating steam by heater and subsequently condensation in circulating air. The humidity is controlled by a humidistat from atmospheric humidity 95% ±3% RH.
The double walled door has been provided with a double wall clear glass window for observation in the chamber without opening the door and disturbing chamber conditions.
A control panel has been provided on left of the body and is provided with all control switches, indicators etc. Equipment to work on 220V AC 50 Hz single phase. Supplied complete with cord and plug but without hygrometer.
